Open marine hardwareConcept 02

omatiller.

From the screw
to the software.A tiller pilot, built from scratch for Dash.

Design study 002Pacific Seacraft 25 · Dash

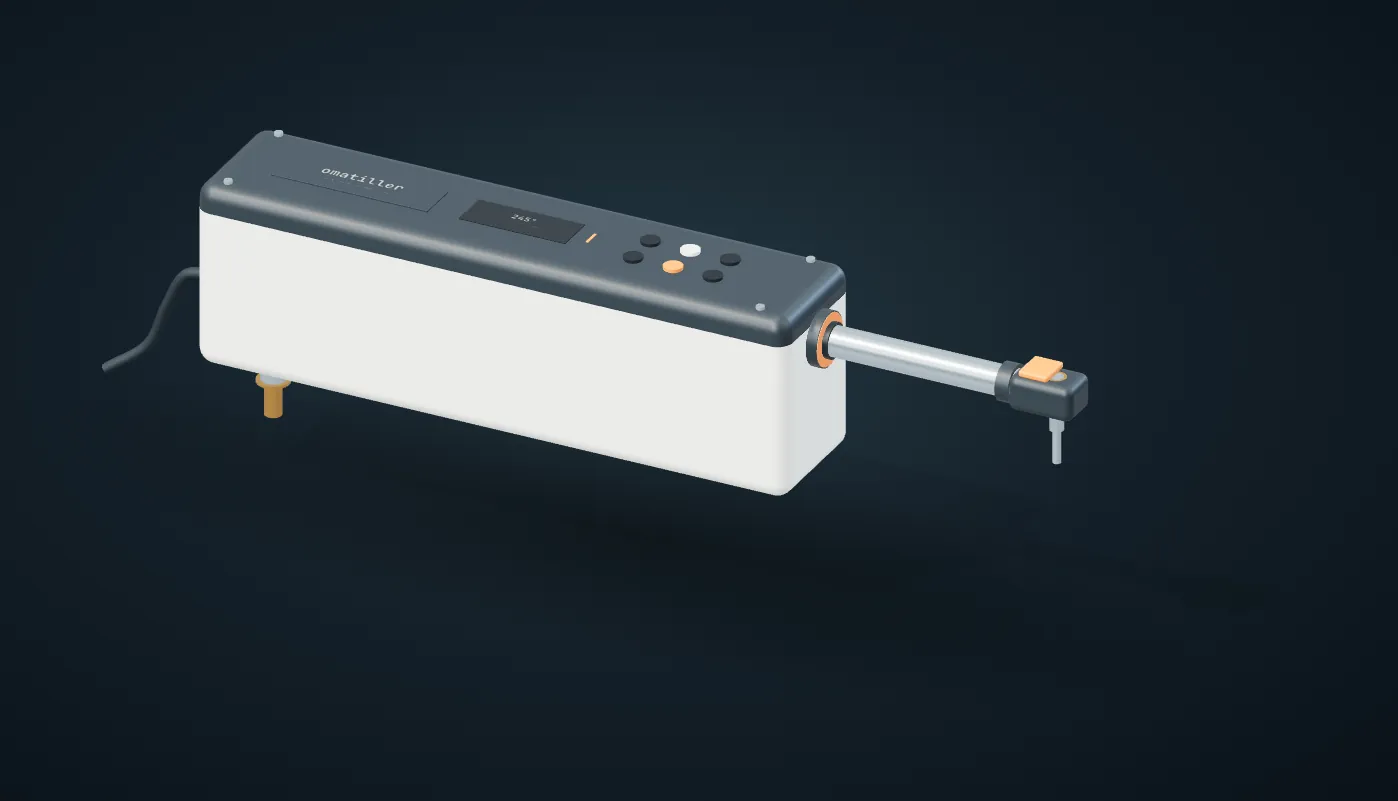

Omatiller concept 02: a pale rounded housing with a graphite service cover and orange controls, a stainless ram ending in a tiller fitting on its pin, a pivot pin and socket underneath, and a keypad and heading display on top.

Loading the assembly…

Drag to orbit · scroll to zoom · select a part

Explore the mechanism. Every part starts as dimensioned CAD.Concept geometry · not yet built or tested

Under the cover

Choose a component to explore
01 / THE HOUSING

Made to come apart.

The housing is 445 mm long, the same as the classic tiller pilots, and a little taller to fit the brushless drive. Four screws lift the service cover off its gasket, and a wiper cleans the ram where it meets the weather.

445 × 100 × 138 mm · service cover · replaceable seals

Our hardware. Our protocol. Your boat.

No NMEA network
required.

Omatiller is being designed around its own heading sensor, controller, and motor drive. Holding a heading won't require an NMEA 2000 backbone, a proprietary chartplotter, or a gateway between them.

Existing instruments can still have a place: omakeel already reads NMEA 0183 GPS and AIS data. NMEA is a compatibility option for the wider suite, not a prerequisite for this pilot.

01Heading sensorIts own box, at least 750 mm from the motor
02Omatiller controllerESP32 in Rust. ODrive S1 over CAN.
03Brushless drive + ramA correction at the tiller

Planned architecture · optional Omahoy app connection

Designed for Dash

A 24.5-foot Pacific Seacraft with a tiller and a lot of sailing ahead. The second study uses the mounting spacing common tiller pilots use: the pin 589 mm from the seat socket and 460 mm from the rudder stock. The 250 mm of travel is still a placeholder until we measure Dash's tiller.

Open all the way down

Python CAD, an original Rust control stack, and a design you can inspect. Part outlines for the motor and controller are placeholders until the parts are in hand. Bench testing and supervised boat trials come before steering.

Follow the build on GitHub ↗
